1.智能化变电站中的预制光缆

1.1产品概述

智能电网的蓬勃发展，需要越来越多的数据量支持，光纤作为一个稳定高质量的通讯媒介而被广泛的运用；但光纤材质有一定的局限性，光纤连接通常采用熔接的方法，需要专用熔接设备和专业人员操作；熔接耗时长；熔接部位所需的存储和保护空间大，且管理复杂。而预制光缆具有结构简单，徒手安装，盲配连接，安全可靠，耗时少，占空间小，使用寿命长等优点，增加少量投资就可以大幅度缩短施工周期，提高智能变电站的抗故障能力，于是预制光缆得到市场的亲赖。主要应用于：室外通信设备，智能变电站、室外恶劣环境下光纤通信、拉远通信基站、军用通信设备、铁路信号控制、矿井等恶劣环境。

Along with the flourishing of smart power grids, it needs more and more data size support. Optical fiber is widely applied as a stable and high-quality communication medium. But there is a limitation of optical fiber material; the fiber connection usually adopts method of fusion welding which needs special welding equipment and professional operation; fusion welding is time-consuming. Whatzs more, welding position needs big storage and protection space, the maintenance is very complicated. On the contrary, pre-made optical fiber cable with many advantages: such as simple structure, unarmed installation, blind-mating connection, safe and reliable, save time, account forsmall storage and long service life, just add a bit of investment can greatly shorten the construction period and increase the resistance fault of intelligent substation, so pre-made optical cable can get the good market. Main application to: out communication device, intelligent substation, optical fiber communication、remote communication base station、military communication equipment、railway signal control and underground mine in the harsh environment.

1.2 主要的特点和优点

©适合工业场景应用符合 IEC61753-1 E 等级(最高等级)。

Suit for industrial applications, measure up IEC61753-1 E grade (highest level).

©采用全金属设计，安全可靠。

Adopt all metal design, safe and reliable.

©温度范围-40°C 到+85°C。

Temperature range from -40°C to +85°C.

减少熔接所需要的附件物料，直接对插即可实现互联。

Decrease the accessories material which in demand by welding, directly insert can realize the interconnection.

©一种盲配的接口，不需要特殊的安装工具。

A kind of blind-mating port, don't need any special installation tool.

©插头能承受拉力不小于 720N。

The plug can support tensile strength not less than 720N.

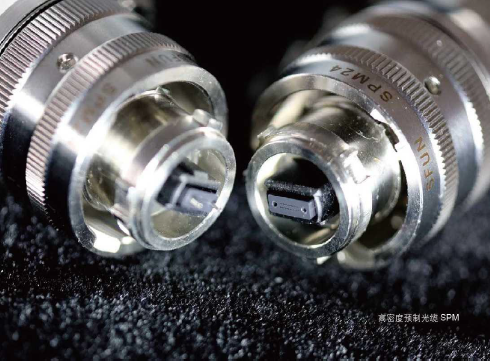

高密度预制光缆 SPM (Standard Prefabricated MPO/MTP/MXC

低损耗：＜0.35 dB

24 芯光纤连接器端面插损低于 0.35dB 光链路损耗极小

低损插头的端面光损甚至可以忽略不计

高防护：IP68

公插头或母插头均达到 IP68

公插头或母插头与适配器连接 IP68

公和母插头同时与适配器连接 IP68 适应高温潮湿极寒粉尘等严酷环境下使用具备水下光传输能力标准化

技术标准和产品标准全球统一

24、12、8、4 芯插头外形统一公插头和母插头外形统一

智能电网与通信、军用使用标准统一

19'机柜安装免熔接光配模块统一

高密度

24 芯光纤传输面积仅为】/3 指甲大小(2.5mm*6.5mm)

1U 高度或厚度免熔接光配模块即可匹配

1U 光配模块可同时接 5 根预制集束光缆

1U 光配模块可同时接 48LC(24DLC)

易维护

安装和拆卸极其方便

清洁器适合公头、母头、适配器

清洁预制集束光缆只需轻轻一推即可完成

模块化

预制插头 24、12、8、4 芯模块化

1U 橫式前进前岀免熔接光配模块化 4U 立式后进前岀免熔接光配模块化 5U 立式前进前岀免熔接光配模块化 MINI 壁挂式免熔接光配模块化

超精准：三重点位

预制外壳五键定位，防误插，可盲插

适配器引导公插头和母插头精确定位对接导向针与导向孔超精密对接

公插头端面与母插头端面零距离弹性接触

小型化

外径不到 28mm,仅比大拇指稍大一些占用空间极小

相同空间内传输更多光纤数量

互换性

互换相同芯数的公插头与母插头实现对接互换相同芯数的公母插头对接任意适配器互换相同芯数的插头适配相同芯数的任意免熔接光配模块。

1.3预制光缆分为插头光缆组件和插座光缆组件

插头光缆蛆件：主要由插头、室外光缆和其他辅助材料蛆成，插头通过附件和室外光缆蛆合在一起，适应户内外敷设。

芯数主要为 4、8. 12 ,可根据实际需求定制。

Plug optical cable module: main be made with plug, outdoor optical cable and other auxiliary materials, plug through the accessories to combine with the outdoor optical fibercable, it adaptthefamily laying, the cores main have 4,8 and 12, we can according the customer's require to make it.

插座光缆蛆件：主要由插座、室内光缆、单芯活动连接器和其他辅助材料蛆成，主用用于柜内、

舱内的设备互连或同插头光缆蛆件配接。常用的连接头为 LC、ST、SC 和 FC ,可根据实际需求定制。

Jack optical cable module: main be made with jack, indoor optical cable, solid connector and other auxiliary materials, Main used for device interconnection of the ark, hold, or with the plug cable components. Commonly used connector have LC、ST、SC and FC, we can according the customer's require to make it
